8.4" Inch TFT-LCD Display

NL6448BC26-08D
NLT

Home
TFT-LCD
NLT
NL6448BC26-08D

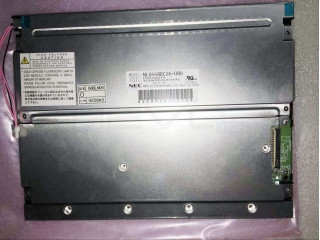

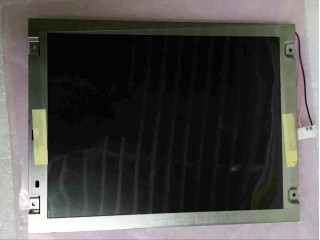

8.4" Inch TFT-LCD Display
NL6448BC26-08D
NLT

Product description

NL6448BC26-08D is a display manufactured by NLT. It has a resolution of 640 x 480, brightness of 400 cd/m2 and contrast of 800:1.

Available Stock

Condition: New Functionally never used, may come with original packaging
Available: 200 units
Added: November 1, 2022
Updated: November 1, 2022

Enter Quantity

Electrical Specs

Total Power Consumption (Watts): 5.4
Backlight Location: Edge (Top side)
Backlight: CCFL
Backlight Lamp Quantity: 2 pcs
Baklight Arrangement: Straight
Backlight Voltage Minimum: 435
Backlight Voltage Typical: 435
Backlight Voltage Maximum: 435
Backlight Current Minimum (mAh): 3
Backlight Current Typical (mAh): 5
Backlight Current Maximum (mAh): 5.5
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: JST
Backlight Interface Model: BHR-04VS-1
Blu interface pin pitch mm: 4
Blu interface amount: 1
Blu interface pin amount: 4
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 1
Signal bits: 6/8-bit
VCC: 3.3
Signal Interface: Connector
Signal Interface Manufacturer: JAE
Signal Interface Model: FI-SE20P-HFE
LCD Signal Interface Pins Pitch (mm): 1.25
Signal Interface Connectors: 1
Signal Pins Quantity: 20
Signal Pins Configuration: LVDS-20P1C8B-180A

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 640 x 480
Dot Pitch: 0.09
Dot pitch vertical: 0.27
Glare: Antiglare
Hardness: Hard coating (3H)
Reflection: No
Display Type: UA-SFT
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 400
Contrast: 800
Colors: 262000
Display colors value 2: 16700000
Gray Scale: 6-bit
Gray method value 2: 6-bit + Hi-FRC
Gamut Percentage: 72
Color Gamut Type: NTSC
Left Viewing Angle: 88
Top Viewing Angle: 88
Right Viewing Angle: 88
Bottom Viewing Angle: 88
Optimal Viewing Direction: Symmetrical
Response Time: 10
Response Time: 10
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.25/1.40 (Typ./Max.)
(5 points)
Sunlight Readable: No
Reverse Scan: Yes
Reverse Scan Direction: 180 degrees

Mechanical specs

Display Type: LCM
Size: 8.4
Aspect Ratio: 4 x 3
Shape: Flat Rectangle
Vertical Active Area: 128.16
Bezel Height: 131.4
Outline Vertical: 152
Outline Depth Typical: 10.5
Outline Depth Max: 11.0000
Mounting: Face mounting holes (4-Ф2.8)
Orientation: Vertical
Mounting Holes: Face mounting holes (4-Ф2.8)

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 340
Typical Weight: 340
Maximum Weight: 340

Temperature Specs

Minimum Operating Temperature: -10
Maximum Operating Temperature: 70
Storage Temperature Minumum: -20
Storage Temperature Maximum: 80
