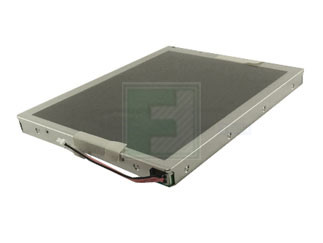

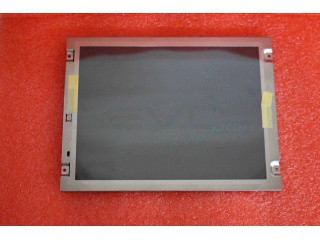

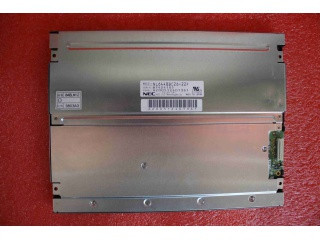

8.4" Inch TFT-LCD Display
NL6448BC26-22F
NLT

Product description

NL6448BC26-22F is a display manufactured by NLT. It has a resolution of 640 x 480, brightness of 800 cd/m2 and contrast of 1000:1.

Electrical Specs

Total Power Consumption (Watts): 3.9
Backlight Location: Edge (Top side)
Backlight: WLED
Backlight Lamp Quantity: 9S4P
Baklight Arrangement: 4 rows
Lamp Lifetime (Time to Half Brightness): 50000
Backlight Voltage Minimum: 29.7
Backlight Voltage Typical: 29.7
Backlight Voltage Maximum: 29.7
Backlight Current Minimum (mAh): 25
Backlight Current Typical (mAh): 27.5
Backlight Current Maximum (mAh): 27.5
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: JST
Backlight Interface Model: SM08B-SRSS-TB
Blu interface pin pitch mm: 1
Blu interface amount: 1
Blu interface pin amount: 8
Blu interface pin configuration: 0
Signal type: CMOS
Signal Channels: 1
Signal bits: 6-bit
VCC: 3.3
Signal Interface: Connector
Signal Interface Manufacturer: HRS
Signal Interface Model: DF9C-31P-1V
LCD Signal Interface Pins Pitch (mm): 1
Signal Interface Connectors: 1
Signal Pins Quantity: 31
Signal Pins Configuration: DRGB-31P1C6B-010F

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 640 x 480
Dot Pitch: 0.09
Dot pitch vertical: 0.27
Glare: Clear
Hardness: Hard coating (3H)
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 800
Contrast: 1000
Colors: 262000
Gray Scale: 6-bit
Gamut Percentage: 40
Color Gamut Type: NTSC
Left Viewing Angle: 80
Top Viewing Angle: 80
Right Viewing Angle: 80
Bottom Viewing Angle: 80
Response Time: 3
Response Time: 15
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.25/1.40 (Typ./Max.)
(5 points)
Sunlight Readable: Yes
Reverse Scan: Yes
Reverse Scan Direction: 180 degrees

Mechanical specs

Display Type: LCM
Size: 8.4
Aspect Ratio: 4 x 3
Shape: Flat Rectangle
Vertical Active Area: 128.16
Bezel Height: 131.4
Outline Vertical: 152
Outline Depth Typical: 10.5
Outline Depth Max: 11.0000
Mounting: Face mounting holes (4-Ф2.8)
Orientation: Vertical
Mounting Holes: Face mounting holes (4-Ф2.8)

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 340
Typical Weight: 340
Maximum Weight: 340

Temperature Specs

Minimum Operating Temperature: -20
Maximum Operating Temperature: 70
Storage Temperature Minumum: -30
Storage Temperature Maximum: 80
