10.4" Inch TFT-LCD Display

NL6448BC33-95D
NLT

Home
TFT-LCD
NLT
NL6448BC33-95D

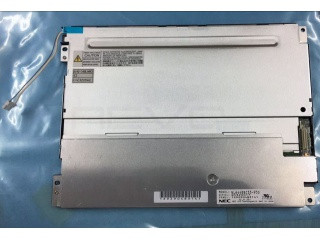

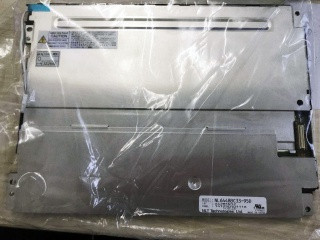

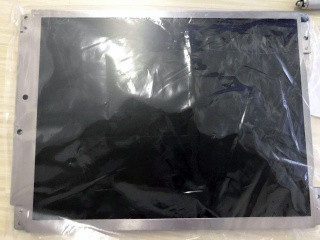

NLT NL6448BC33-95D - TFT-LCD 640 x 480

Product description

NL6448BC33-95D is a display manufactured by NLT. It has a resolution of 640 x 480, brightness of 200 cd/m2 and contrast of 300:1.

Electrical Specs

Total Power Consumption (Watts): 4
Backlight Location: Edge (Bottom side)
Backlight: CCFL
Backlight Lamp Quantity: 1 pcs
Baklight Arrangement: Straight
Lamp Lifetime (Time to Half Brightness): 50000
Backlight Voltage Minimum: 520
Backlight Voltage Typical: 520
Backlight Voltage Maximum: 520
Backlight Current Minimum (mAh): 2
Backlight Current Typical (mAh): 6
Backlight Current Maximum (mAh): 6.5
Backlight Operation Frequency: 35
Backlight Driver Board: None
Backlight Connection: via Connector
Signal type: Parallel RGB
Signal Channels: 1
Signal bits: 6-bit
VCC: 3.3
Signal Interface: Connector

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 640 x 480
Dot Pitch: 0.11
Dot pitch vertical: 0.33
Glare: Antiglare
Hardness: Hard coating (3H)
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 200
Contrast: 300
Colors: 262000
Gray Scale: 6-bit
Gamut Percentage: 40
Color Gamut Type: NTSC
Left Viewing Angle: 70
Top Viewing Angle: 70
Right Viewing Angle: 40
Bottom Viewing Angle: 70
Optimal Viewing Direction: 6 o'clock
Response Time: 10
Response Time: 40
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.25/1.40 (Typ./Max.)
(5 points)
Sunlight Readable: No
Reverse Scan: Yes
Reverse Scan Direction: 180 degrees

Mechanical specs

Display Type: LCM
Size: 10.4
Aspect Ratio: 4 x 3
Shape: Flat Rectangle
Vertical Active Area: 158.4
Bezel Height: 163.4
Outline Vertical: 179.4
Outline Depth Typical: 9.5
Outline Depth Max: 10.0000
Mounting: Face mounting holes (2-Φ3.4, 2-R1.7×4.4) on left, right bezel
Orientation: Vertical
Mounting Holes: Face mounting holes (2-Φ3.4, 2-R1.7×4.4) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 540
Typical Weight: 540
Maximum Weight: 540

Temperature Specs

Maximum Operating Temperature: 55
Storage Temperature Minumum: -25
Storage Temperature Maximum: 70
