7" Inch TFT-LCD Display

NL8048AC19-14F
NLT

Home
TFT-LCD
NLT
NL8048AC19-14F

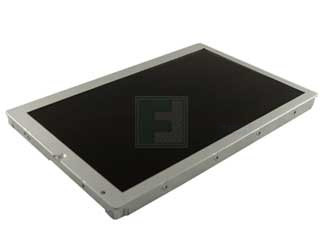

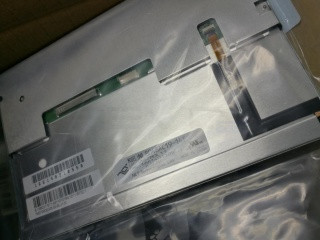

7" Inch TFT-LCD Display
NL8048AC19-14F
NLT

Product description

NL8048AC19-14F is a display manufactured by NLT. It has a resolution of 800 x 480, brightness of 1000 cd/m2 and contrast of 800:1.

Electrical Specs

Total Power Consumption (Watts): 5.43
Backlight Location: Edge
Backlight: WLED
Lamp Lifetime (Time to Half Brightness): 100000
Backlight Driver Board: With LED Driver
Minimum Voltage Driver Consumption: 10.8
Maximum Voltage Driver Consumption: 13.2
Backlight Connection: via Connector
Backlight Interface Manufacturer: JAE
Backlight Interface Model: FI-S6P-HFE
Blu interface pin pitch mm: 1.25
Blu interface amount: 1
Blu interface pin amount: 6
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 1
Signal bits: 6-bit
VCC: 3.3
Typical LCD Power Consumption: 0.63
Signal Interface: Connector
Signal Interface Manufacturer: JAE
Signal Interface Model: FI-SE20P-HFE
LCD Signal Interface Pins Pitch (mm): 1.25
Signal Interface Connectors: 1
Signal Pins Quantity: 20
Signal Pins Configuration: LVDS-20P1C6B-230B

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 800 x 480
Dot Pitch: 0.06
Dot pitch vertical: 0.19
Glare: Antiglare
Hardness: Hard coating (3H)
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 1000
Contrast: 800
Colors: 262000
Gray Scale: 6-bit
Gamut Percentage: 60
Color Gamut Type: NTSC
Left Viewing Angle: 80
Top Viewing Angle: 80
Right Viewing Angle: 80
Bottom Viewing Angle: 80
Optimal Viewing Direction: 6 o'clock
Response Time: 3
Response Time: 5
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.25/1.40 (Typ./Max.)
(5 points)
Sunlight Readable: Yes
Reverse Scan: Yes
Reverse Scan Direction: 180 degrees

Mechanical specs

Display Type: LCM
Size: 7
Aspect Ratio: 15 x 9
Shape: Flat Rectangle
Vertical Active Area: 91.44
Bezel Height: 93.5
Outline Vertical: 111
Outline Depth Typical: 8.5
Outline Depth Max: 9.0000
Mounting: Side mounting holes (4-M2) on left, right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (4-M2) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 192.5
Typical Weight: 192.5
Maximum Weight: 192.5

Temperature Specs

Minimum Operating Temperature: -30
Maximum Operating Temperature: 80
Storage Temperature Minumum: -40
Storage Temperature Maximum: 80
