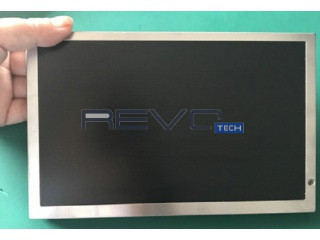

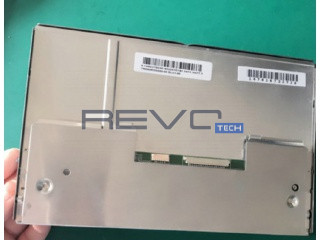

8" Inch TFT-LCD Display
NL8048AC21-01F
NLT

Product description

NL8048AC21-01F is a display manufactured by NLT. It has a resolution of 800 x 480, brightness of 1000 cd/m2 and contrast of 800:1.

Electrical Specs

Total Power Consumption (Watts): 5.9
Backlight Location: Edge
Backlight: WLED
Lamp Lifetime (Time to Half Brightness): 100000
Backlight Driver Board: With LED Driver
Minimum Voltage Driver Consumption: 10.8
Maximum Voltage Driver Consumption: 13.2
Backlight Connection: via Connector
Signal type: LVDS
Signal Channels: 1
Signal bits: 6-bit
VCC: 3.3
Signal Interface: Connector

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 800 x 480
Dot Pitch: 0.07
Dot pitch vertical: 0.22
Glare: Antiglare
Hardness: Hard coating (3H)
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 1000
Contrast: 800
Colors: 262000
Gray Scale: 6-bit
Gamut Percentage: 70
Color Gamut Type: NTSC
Left Viewing Angle: 80
Top Viewing Angle: 80
Right Viewing Angle: 80
Bottom Viewing Angle: 80
Response Time: 3
Response Time: 5
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.25/1.40 (Typ./Max.)
(5 points)
Sunlight Readable: Yes
Reverse Scan: Yes
Reverse Scan Direction: 180 degrees

Mechanical specs

Display Type: LCM
Size: 8
Aspect Ratio: 15 x 9
Shape: Flat Rectangle
Vertical Active Area: 104.4
Bezel Height: 107.4
Outline Vertical: 122
Outline Depth Typical: 8.9
Outline Depth Max: 9.4000
Mounting: Side mounting holes (4-M2) on left, right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (4-M2) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 240
Typical Weight: 240
Maximum Weight: 240

Temperature Specs

Minimum Operating Temperature: -30
Maximum Operating Temperature: 80
Storage Temperature Minumum: -30
Storage Temperature Maximum: 80
