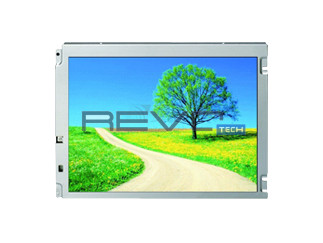

NLT NL8060BC21-11KG - TFT-LCD 800 x 600

Product description

NL8060BC21-11KG is a display manufactured by NLT. It has a resolution of 800 x 600, brightness of 750 cd/m2 and contrast of 800:1.

Electrical Specs

Total Power Consumption (Watts): 5.4
Backlight Location: Edge (Top side)
Backlight: WLED
Backlight Lamp Quantity: 4 strings
Baklight Arrangement: 4 rows
Lamp Lifetime (Time to Half Brightness): 70000
Backlight Voltage Minimum: 18.6
Backlight Voltage Typical: 18.6
Backlight Voltage Maximum: 18.6
Backlight Current Minimum (mAh): 50
Backlight Current Typical (mAh): 55
Backlight Current Maximum (mAh): 55
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: JST
Backlight Interface Model: SM08B-SRSS-TB
Blu interface pin pitch mm: 1
Blu interface amount: 1
Blu interface pin amount: 8
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 1
Signal bits: 6/8-bit
VCC: 3.3
Signal Interface: Connector
Signal Interface Manufacturer: JAE
Signal Interface Model: FI-SE20P-HFE
LCD Signal Interface Pins Pitch (mm): 1.25
Signal Interface Connectors: 1
Signal Pins Quantity: 20
Signal Pins Configuration: LVDS-20P1C8B-170A

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 800 x 600
Dot Pitch: 0.07
Dot pitch vertical: 0.21
Hardness: Hard coating (2H)
Reflection: Yes
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 750
Contrast: 800
Colors: 262000
Display colors value 2: 16700000
Gray Scale: 6-bit
Gray method value 2: 6-bit + Hi-FRC
Gamut Percentage: 40
Color Gamut Type: NTSC
Left Viewing Angle: 80
Top Viewing Angle: 80
Right Viewing Angle: 80
Bottom Viewing Angle: 80
Response Time: 3
Response Time: 15
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.25/1.40 (Typ./Max.)
(5 points)
Sunlight Readable: No
Reverse Scan: Yes
Reverse Scan Direction: 180 degrees

Mechanical specs

Display Type: LCM
Size: 8.4
Aspect Ratio: 4 x 3
Shape: Flat Rectangle
Vertical Active Area: 127.8
Bezel Height: 131.4
Outline Vertical: 152
Outline Depth Typical: 10.1
Outline Depth Max: 10.8000
Mounting: Face mounting holes (4-Ф2.8)
Orientation: Vertical
Mounting Holes: Face mounting holes (4-Ф2.8)

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED
Touchscreen Attachment Type: Optically Bonded
Simultaneous Touch Points: 16
Touchscreen Connection: Connector
Touchscreen Controller: Touch controller optional

Weights specs

Minimum Weight: 390
Typical Weight: 390
Maximum Weight: 390

Temperature Specs

Minimum Operating Temperature: -30
Maximum Operating Temperature: 80
Storage Temperature Minumum: -30
Storage Temperature Maximum: 80
