7.2" Inch TFT-LCD Display
NL8060BH18-01
NLT

Product description

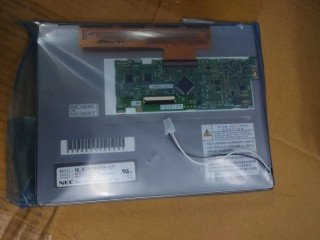

NL8060BH18-01 is a display manufactured by NLT. It has a resolution of 800 x 600, brightness of 400 cd/m2 and contrast of 600:1.

Electrical Specs

Total Power Consumption (Watts): 6.1
Backlight Location: Edge
Backlight: CCFL
Backlight Lamp Quantity: 1 pcs
Baklight Arrangement: U shape
Signal type: LVDS
Signal Channels: 1
Signal bits: 6/8-bit
VCC: 3.3
Signal Interface: Connector

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 800 x 600
Dot Pitch: 0.09
Dot pitch vertical: 0.06
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 400
Contrast: 600
Colors: 262000
Display colors value 2: 16700000
Gray Scale: 6-bit
Gray method value 2: 8-bit
Gamut Percentage: 72
Color Gamut Type: NTSC
Left Viewing Angle: 80
Top Viewing Angle: 80
Right Viewing Angle: 80
Bottom Viewing Angle: 60
3D Type: 3D (Naked eye)
Sunlight Readable: No
Reverse Scan: Yes
Reverse Scan Direction: 180 degrees

Mechanical specs

Display Type: LCM
Size: 7.2
Aspect Ratio: 4 x 3
Shape: Flat Rectangle
Vertical Active Area: 109.8
Outline Vertical: 129.3
Outline Depth Max: 9.6000
Orientation: Vertical

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 260
Typical Weight: 260
Maximum Weight: 260

Temperature Specs

Maximum Operating Temperature: 55
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
