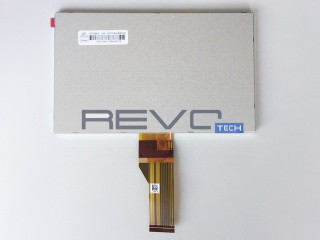

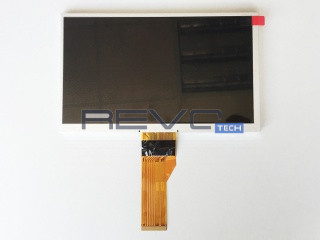

7" Inch TFT-LCD Display

P070BAG-CM1
Innolux

Home
TFT-LCD
Innolux
P070BAG-CM1

7" Inch TFT-LCD Display
P070BAG-CM1
Innolux

Product description

P070BAG-CM1 is a display manufactured by Innolux. It has a resolution of 1024 x 600, brightness of 500 cd/m2 and contrast of 800:1.

Electrical Specs

Total Power Consumption (Watts): 3.02
Backlight Location: Edge
Backlight: WLED
Lamp Lifetime (Time to Half Brightness): 15000
Backlight Voltage Minimum: 8.4
Backlight Voltage Typical: 8.4
Backlight Voltage Maximum: 8.4
Backlight Current Typical (mAh): 265
Typical Backlight Consumption: 2.62
Backlight Driver Board: None
Backlight Connection: Embedded into Signal
Signal type: LVDS
Signal Channels: 1
Signal bits: 6/8-bit
LCD Signal AVDD: 11
LCD Signal VGH: 20
LCD Signal VGL: -6.8
LCD Signal DVDD: 3.3
Typical LCD Power Consumption: 0.4
Signal Interface: FPC
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 40

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1024 x 600
Dot Pitch: 0.05
Dot pitch vertical: 0.14
Hardness: Hard coating
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 500
Contrast: 800
Colors: 262000
Display colors value 2: 16700000
Gray Scale: 6-bit
Gray method value 2: 6-bit + Dithering
Gamut Percentage: 70
Color Gamut Type: NTSC
Left Viewing Angle: 75
Top Viewing Angle: 75
Right Viewing Angle: 70
Bottom Viewing Angle: 75
Optimal Viewing Direction: 6 o'clock
Response Time: 10
Response Time: 15
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.33/1.43 (Typ./Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: Yes
Reverse Scan Direction: Up/Down/Left/Right

Mechanical specs

Display Type: LCM
Size: 7
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 85.92
Bezel Height: 89.1
Outline Vertical: 100
Outline Depth Typical: 4.8
Outline Depth Max: 5.1000
Mounting: Without
Orientation: Vertical
Mounting Holes: Without

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 140
Typical Weight: 140
Maximum Weight: 140

Temperature Specs

Minimum Operating Temperature: -20
Maximum Operating Temperature: 70
Storage Temperature Minumum: -30
Storage Temperature Maximum: 80
