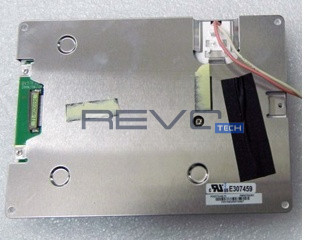

E Ink PD057VU7 - TFT-LCD 320 x 240

Product description

PD057VU7 is a display manufactured by E Ink. It has a resolution of 320 x 240, brightness of 600 cd/m2 and contrast of 600:1.

Electrical Specs

Total Power Consumption (Watts): 2.89
Backlight: WLED
Backlight Lamp Quantity: 3S12P
Baklight Arrangement: Array
Lamp Lifetime (Time to Half Brightness): 20000
Backlight Voltage Minimum: 11
Backlight Voltage Typical: 11
Backlight Voltage Maximum: 11
Backlight Current Typical (mAh): 240
Maximum Backlight Consumption: 2.64
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: JST
Backlight Interface Model: BHR-03VS-1
Blu interface pin pitch mm: 4
Blu interface amount: 1
Blu interface pin amount: 3
Blu interface pin configuration: 0
Signal type: TTL
Signal Channels: 1
Signal bits: 6-bit
VCC: 3.3
Maximum LCD Power Consumption: 0.25
Typical LCD Power Consumption: 0.22
Signal Interface: Connector
Signal Interface Manufacturer: Kyocera Elco
Signal Interface Model: 08-6210-033-340-800A+
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 33
Signal Pins Configuration: DRGB-33P1C6B-020C

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 320 x 240
Dot Pitch: 0.12
Dot pitch vertical: 0.36
Glare: Antiglare
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 600
Contrast: 600
Colors: 262000
Gray Scale: 6-bit
Left Viewing Angle: 60
Top Viewing Angle: 60
Right Viewing Angle: 40
Bottom Viewing Angle: 50
Response Time: 15
Response Time: 25
Chromaticity: 0.31
Chromaticity: 0.34
light uniformity: 1.17/1.25 (Typ./Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: Yes
Reverse Scan Direction: Up/Down/Left/Right

Mechanical specs

Display Type: LCM
Size: 5.7
Aspect Ratio: 4 x 3
Shape: Flat Rectangle
Vertical Active Area: 86.4
Bezel Height: 88.4
Outline Vertical: 104.6
Outline Depth Typical: 14.45
Outline Depth Max: 14.9500
Mounting: Rear mounting holes (4-Ф2.6)
Orientation: Vertical
Mounting Holes: Rear mounting holes (4-Ф2.6)

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED
Resistive Touchscreen Type: 4-Wire
Simultaneous Touch Points: 1
Touchscreen Connection: Connector
Touchscreen Controller: Without touch controller

Weights specs

Minimum Weight: 244
Typical Weight: 244
Maximum Weight: 244

Temperature Specs

Minimum Operating Temperature: -30
Maximum Operating Temperature: 80
Storage Temperature Minumum: -40
Storage Temperature Maximum: 85
