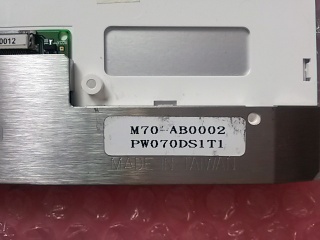

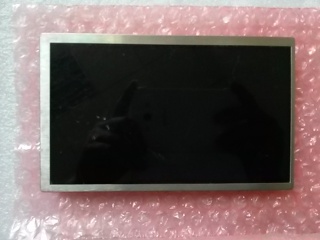

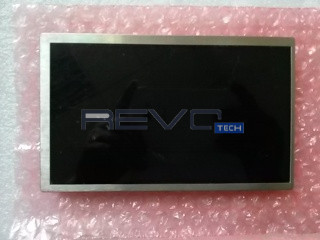

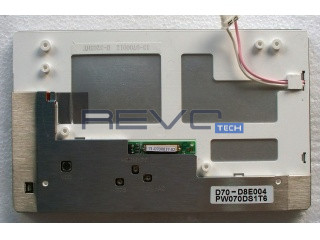

7" Inch TFT-LCD Display

PW070DS1T1
E Ink

Home
TFT-LCD
E Ink
PW070DS1T1

7" Inch TFT-LCD Display
PW070DS1T1
E Ink

Product description

PW070DS1T1 is a display manufactured by E Ink. It has a resolution of 480 x 234, brightness of 350 cd/m2 and contrast of 150:1.

Electrical Specs

Backlight Location: Edge
Backlight: CCFL
Backlight Lamp Quantity: 1 pcs
Lamp Lifetime (Time to Half Brightness): 10000
Backlight Voltage Minimum: 480
Backlight Voltage Typical: 520
Backlight Voltage Maximum: 560
Backlight Current Minimum (mAh): 4
Backlight Current Typical (mAh): 6
Backlight Current Maximum (mAh): 8
Typical Backlight Consumption: 4.2
Backlight Driver Board: None
Backlight Connection: via Connector
Signal type: Analog RGB + Composite Video
VCC: 3.3
LCD Signal VDD: 5
Signal Interface: Connector

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 480 x 234
Dot Pitch: 0.11
Dot pitch vertical: 0.37
Glare: Antiglare
Hardness: Hard coating
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 350
Contrast: 150
Left Viewing Angle: 55
Top Viewing Angle: 55
Right Viewing Angle: 15
Bottom Viewing Angle: 35
Optimal Viewing Direction: 6 o'clock
Response Time: 30
Response Time: 50
Sunlight Readable: No
Reverse Scan: Yes
Reverse Scan Direction: Up/Down/Left/Right

Mechanical specs

Display Type: LCM
Size: 7
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 87.05
Bezel Height: 91
Outline Vertical: 101.8
Outline Depth Typical: 12
Outline Depth Max: 12.5000
Mounting: Rear mounting Pole
Orientation: Vertical
Mounting Holes: Rear mounting Pole

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 200
Typical Weight: 200
Maximum Weight: 200

Temperature Specs

Minimum Operating Temperature: -20
Maximum Operating Temperature: 70
Storage Temperature Minumum: -30
Storage Temperature Maximum: 80
