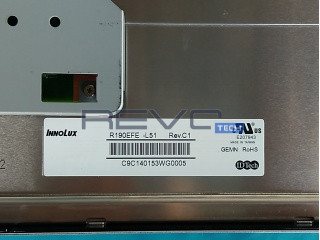

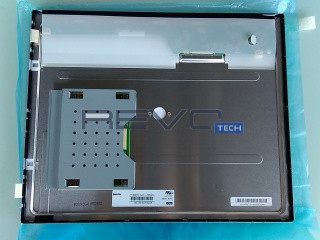

Innolux R190EFE-L51 - TFT-LCD 1280 x 1024

Product description

R190EFE-L51 is a display manufactured by Innolux. It has a resolution of 1280 x 1024, brightness of 1400 cd/m2 and contrast of 1000:1.

Electrical Specs

Total Power Consumption (Watts): 27.74
Backlight Location: Edge
Backlight: WLED
Backlight Lamp Quantity: 4 strings
Baklight Arrangement: 4 rows
Lamp Lifetime (Time to Half Brightness): 50000
Backlight Voltage Minimum: 38.4
Backlight Voltage Typical: 38.4
Backlight Voltage Maximum: 38.4
Backlight Current Typical (mAh): 105
Maximum Backlight Consumption: 18.1
Typical Backlight Consumption: 16.1
Backlight Driver Board: With LED Driver
Minimum Voltage Driver Consumption: 21.6
Maximum Voltage Driver Consumption: 26.4
Minimum Current Driver Consumption: 0.5
Minimum Current Driver Consumption: 0.9
Minimum Backlight Consumption: 16.8
Maximum Backlight Consumption (Watts): 23.8
Backlight Connection: via Connector
Backlight Interface Manufacturer: FCN
Backlight Interface Model: JH2-D2-143N
Blu interface pin pitch mm: 2
Blu interface amount: 1
Blu interface pin amount: 14
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 2
Signal bits: 8-bit
VCC: 12
Maximum LCD Power Consumption: 9.74
Typical LCD Power Consumption: 6.96
Signal Interface: Connector
Signal Interface Manufacturer: STM
Signal Interface Model: MSAKT2407P30A
LCD Signal Interface Pins Pitch (mm): 1
Signal Interface Connectors: 1
Signal Pins Quantity: 30
Signal Pins Configuration: LVDS-30P2C8B-160H

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1280 x 1024
Dot Pitch: 0.1
Dot pitch vertical: 0.29
Glare: Antiglare
Glare: 25
Hardness: Hard coating (3H)
Reflection: No
Display Type: IPS
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 1400
Contrast: 1000
Gray Scale: 8-bit
Left Viewing Angle: 85
Top Viewing Angle: 85
Right Viewing Angle: 85
Bottom Viewing Angle: 85
Optimal Viewing Direction: Symmetrical
Response Time: 15
Response Time: 15
Chromaticity: 0.29
Chromaticity: 0.31
Sunlight Readable: Yes
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 19
Aspect Ratio: 5 x 4
Shape: Flat Rectangle
Vertical Active Area: 301.06
Bezel Height: 305
Outline Vertical: 324
Outline Depth Typical: 20.1
Outline Depth Max: 26.1000
Mounting: Side mounting holes (4 pcs) on left right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (4 pcs) on left right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 1980
Typical Weight: 1980
Maximum Weight: 1980

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
