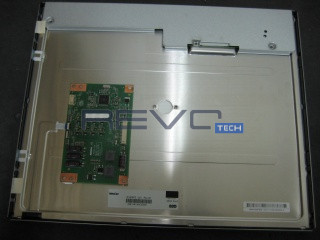

Innolux R190EFE-L61 - TFT-LCD 1280 x 1024

Product description

R190EFE-L61 is a display manufactured by Innolux. It has a resolution of 1280 x 1024, brightness of 650 cd/m2 and contrast of 900:1.

Electrical Specs

Total Power Consumption (Watts): 26
Backlight Location: Edge (Bottom side)
Backlight: WLED
Lamp Lifetime (Time to Half Brightness): 50000
Backlight Voltage Minimum: 38.4
Backlight Voltage Typical: 38.4
Backlight Voltage Maximum: 38.4
Backlight Current Typical (mAh): 150
Maximum Backlight Consumption: 28.8
Typical Backlight Consumption: 25.6
Backlight Driver Board: With LED Driver
Minimum Voltage Driver Consumption: 21.6
Maximum Voltage Driver Consumption: 26.4
Minimum Backlight Consumption: 23.04
Maximum Backlight Consumption (Watts): 25.9
Backlight Connection: via Connector
Backlight Interface Manufacturer: FCN
Backlight Interface Model: JH2-D2-143N
Blu interface pin pitch mm: 2
Blu interface amount: 1
Blu interface pin amount: 14
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 2
Signal bits: 8-bit
VCC: 12
Maximum LCD Power Consumption: 6.89
Typical LCD Power Consumption: 4.92
Signal Interface: Connector
Signal Interface Manufacturer: STM
Signal Interface Model: MSAKT2407P30A
LCD Signal Interface Pins Pitch (mm): 1
Signal Interface Connectors: 1
Signal Pins Quantity: 30
Signal Pins Configuration: LVDS-30P2C8B-160H

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1280 x 1024
Dot Pitch: 0.1
Dot pitch vertical: 0.29
Glare: Antiglare
Hardness: Hard coating (3H)
Reflection: No
Display Type: IPS
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 650
Contrast: 900
Colors: 16700000
Gray Scale: 8-bit
Gamut Percentage: 72
Color Gamut Type: NTSC
Left Viewing Angle: 85
Top Viewing Angle: 85
Right Viewing Angle: 85
Bottom Viewing Angle: 85
Optimal Viewing Direction: Symmetrical
Response Time: 15
Response Time: 15
Chromaticity: 0.31
Chromaticity: 0.33
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 19
Aspect Ratio: 5 x 4
Shape: Flat Rectangle
Vertical Active Area: 301.06
Bezel Height: 305
Outline Vertical: 324
Outline Depth Typical: 19.8
Outline Depth Max: 20.7000
Mounting: Side mounting holes (4 pcs) on left right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (4 pcs) on left right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 1970
Typical Weight: 1970
Maximum Weight: 1970

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
