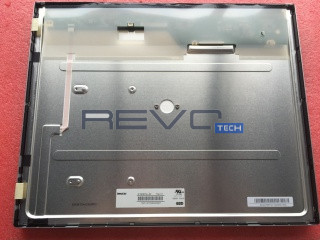

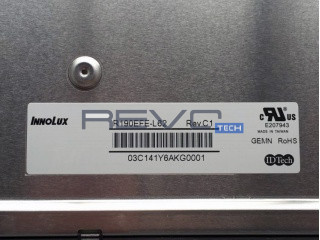

Innolux R190EFE-L62 - TFT-LCD 1280 x 1024

Product description

R190EFE-L62 is a display manufactured by Innolux. It has a resolution of 1280 x 1024, brightness of 330 cd/m2 and contrast of 1000:1.

Electrical Specs

Total Power Consumption (Watts): 25.5
Backlight Location: Edge
Backlight: WLED
Lamp Lifetime (Time to Half Brightness): 50000
Backlight Driver Board: With LED Driver
Minimum Backlight Consumption: 20
Maximum Backlight Consumption (Watts): 22
Backlight Connection: via Connector
Backlight Interface Manufacturer: FCN
Backlight Interface Model: WM13-406-063N
Blu interface pin pitch mm: 1
Blu interface amount: 1
Blu interface pin amount: 6
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 2
Signal bits: 8-bit
VCC: 12
Maximum LCD Power Consumption: 6.6
Typical LCD Power Consumption: 5.5
Signal Interface: Connector
Signal Interface Manufacturer: STM
Signal Interface Model: MSAKT2407P30A
LCD Signal Interface Pins Pitch (mm): 1
Signal Interface Connectors: 1
Signal Pins Quantity: 30
Signal Pins Configuration: LVDS-30P2C8B-160H

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1280 x 1024
Dot Pitch: 0.1
Dot pitch vertical: 0.29
Glare: Antiglare
Hardness: Hard coating (3H)
Reflection: No
Display Type: IPS
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 330
Contrast: 1000
Colors: 16700000
Gray Scale: 8-bit
Gamut Percentage: 71
Color Gamut Type: NTSC
Left Viewing Angle: 89
Top Viewing Angle: 89
Right Viewing Angle: 89
Bottom Viewing Angle: 89
Optimal Viewing Direction: Symmetrical
Response Time: 15
Response Time: 15
Chromaticity: 0.31
Chromaticity: 0.33
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 19
Aspect Ratio: 5 x 4
Shape: Flat Rectangle
Vertical Active Area: 301.06
Bezel Height: 305
Outline Vertical: 324
Outline Depth Typical: 14
Mounting: Side mounting holes (4 pcs) on left, right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (4 pcs) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 2220
Typical Weight: 2220
Maximum Weight: 2220

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
