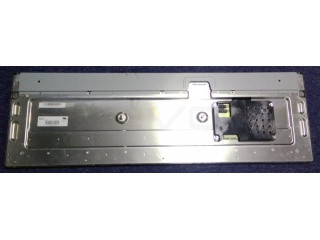

29" Inch TFT-LCD Display

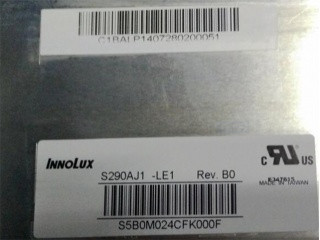

S290AJ1-LE1
Innolux

Home
TFT-LCD
Innolux
S290AJ1-LE1

29" Inch TFT-LCD Display
S290AJ1-LE1
Innolux

Product description

S290AJ1-LE1 is a display manufactured by Innolux. It has a resolution of 1920 x 540, brightness of 1000 cd/m2 and contrast of 4500:1.

Electrical Specs

Backlight Location: Edge
Backlight: WLED
Lamp Lifetime (Time to Half Brightness): 50000
Backlight Driver Board: With LED Driver
Minimum Voltage Driver Consumption: 22.8
Maximum Voltage Driver Consumption: 25.2
Backlight Connection: via Connector
Backlight Interface Manufacturer: CviLux
Backlight Interface Model: CI0114M1HR0-LA
Blu interface pin pitch mm: 2
Blu interface amount: 1
Blu interface pin amount: 14
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 2
Signal bits: 8-bit
VCC: 12
Maximum LCD Power Consumption: 3.67
Typical LCD Power Consumption: 3.3
Signal Interface: Connector
Signal Interface Manufacturer: FCN
Signal Interface Model: WF23-402-5133
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 51

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1920 x 540
Dot Pitch: 0.12
Dot pitch vertical: 0.36
Glare: Antiglare
Glare: 3
Reflection: No
Display Type: VA
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 1000
Contrast: 4500
Colors: 16700000
Gray Scale: 8-bit
Gamut Percentage: 72
Color Gamut Type: NTSC
Left Viewing Angle: 89
Top Viewing Angle: 89
Right Viewing Angle: 89
Bottom Viewing Angle: 89
Optimal Viewing Direction: Symmetrical
Chromaticity: 0.28
Chromaticity: 0.29
light uniformity: 1.30 (Max.)
(5 points)
Sunlight Readable: Yes
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 29
Aspect Ratio: 3 x 1
Shape: Flat Rectangle
Vertical Active Area: 196.43
Bezel Height: 200.43
Outline Vertical: 229.49
Outline Depth Typical: 19.8
Outline Depth Max: 30.2000
Orientation: Vertical / Horizontal

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 2.4
Typical Weight: 2.4
Maximum Weight: 2.4

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
