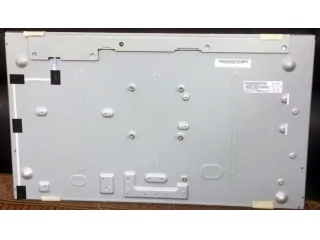

26" Inch TFT-LCD Display

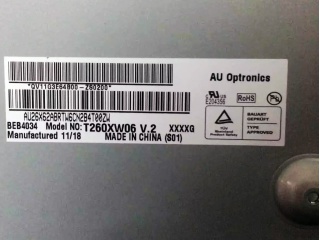

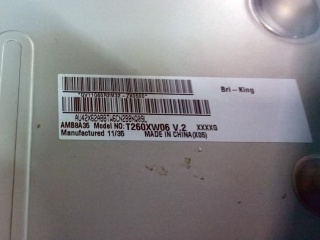

T260XW06 V2
AUO

Product description

T260XW06 V2 is a display manufactured by AUO. It has a resolution of 1366 x 768, brightness of 350 cd/m2 and contrast of 3000:1.

Electrical Specs

Backlight Location: Edge
Backlight: WLED
Lamp Lifetime (Time to Half Brightness): 30000
Backlight Driver Board: With LED Driver
Minimum Voltage Driver Consumption: 22.8
Maximum Voltage Driver Consumption: 25.2
Minimum Backlight Consumption: 26.88
Maximum Backlight Consumption (Watts): 28.46
Backlight Connection: via Connector
Backlight Interface Manufacturer: CviLux
Backlight Interface Model: CI1114M1HR0-NH
Blu interface pin pitch mm: 1
Blu interface amount: 1
Blu interface pin amount: 14
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 1
Signal bits: 8-bit
VCC: 12
Maximum LCD Power Consumption: 3.96
Typical LCD Power Consumption: 3.6
Signal Interface: Connector
Signal Interface Manufacturer: STARCONN
Signal Interface Model: 093G30-B0001A-1
LCD Signal Interface Pins Pitch (mm): 1
Signal Interface Connectors: 1
Signal Pins Quantity: 30
Signal Pins Configuration: LVDS-30P1C8B-015C

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1366 x 768
Dot Pitch: 0.14
Dot pitch vertical: 0.42
Glare: Antiglare
Glare: 11
Hardness: Hard coating (3H)
Reflection: No
Display Type: VA
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 350
Contrast: 3000
Colors: 16700000
Gray Scale: 8-bit
Gamut Percentage: 68
Color Gamut Type: NTSC
Left Viewing Angle: 89
Top Viewing Angle: 89
Right Viewing Angle: 89
Bottom Viewing Angle: 89
Optimal Viewing Direction: Symmetrical
Chromaticity: 0.28
Chromaticity: 0.29
light uniformity: 1.33 (Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 26
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 323.71
Bezel Height: 328.2
Outline Vertical: 361
Outline Depth Typical: 14.9
Orientation: Vertical

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 3400
Typical Weight: 3400
Maximum Weight: 3400

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
