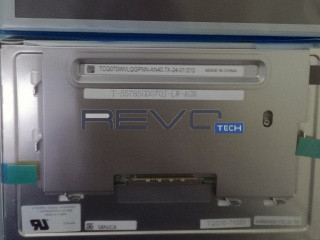

Kyocera TCG070WVLQGPNN-AN40 - TFT-LCD 800 x 480

Product description

TCG070WVLQGPNN-AN40 is a display manufactured by Kyocera. It has a resolution of 800 x 480, brightness of 1000 cd/m2 and contrast of 750:1.

Electrical Specs

Total Power Consumption (Watts): 5.22
Backlight Location: Edge
Backlight: WLED
Lamp Lifetime (Time to Half Brightness): 70000
Backlight Driver Board: With LED Driver
Minimum Voltage Driver Consumption: 10.8
Maximum Voltage Driver Consumption: 13.2
Backlight Connection: Embedded into Signal
Signal type: LVDS
Signal Channels: 1
Signal bits: 6/8-bit
VCC: 3.3
Typical LCD Power Consumption: 0.66
Signal Interface: Connector

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 800 x 480
Dot Pitch: 0.06
Dot pitch vertical: 0.19
Glare: Antiglare
Reflection: No
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 1000
Contrast: 750
Colors: 262000
Display colors value 2: 16200000
Gray Scale: 6-bit
Gray method value 2: 6-bit + FRC
Gamut Percentage: 50
Color Gamut Type: NTSC
Left Viewing Angle: 85
Top Viewing Angle: 85
Right Viewing Angle: 85
Bottom Viewing Angle: 85
Optimal Viewing Direction: Symmetrical
Response Time: 18
Response Time: 12
Chromaticity: 0.31
Chromaticity: 0.33
Sunlight Readable: Yes
Reverse Scan: Yes
Reverse Scan Direction: 180 degrees

Mechanical specs

Display Type: LCM
Size: 7
Aspect Ratio: 15 x 9
Shape: Flat Rectangle
Vertical Active Area: 91.44
Bezel Height: 93.4
Outline Vertical: 109.7
Outline Depth Typical: 7.5
Outline Depth Max: 9.7000
Mounting: Side mounting holes (4-M2) on left, right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (4-M2) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 230
Typical Weight: 230
Maximum Weight: 230

Temperature Specs

Minimum Operating Temperature: -30
Maximum Operating Temperature: 80
Storage Temperature Minumum: -30
Storage Temperature Maximum: 80
