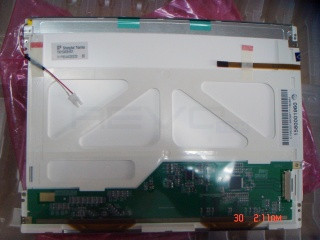

Tianma TM104SBH01 - TFT-LCD 800 x 600

Product description

TM104SBH01 is a display manufactured by Tianma. It has a resolution of 800 x 600, brightness of 300 cd/m2 and contrast of 400:1.

Electrical Specs

Backlight Location: Edge
Backlight: WLED
Backlight Lamp Quantity: 6S6P
Baklight Arrangement: Array
Lamp Lifetime (Time to Half Brightness): 20000
Backlight Voltage Minimum: 19.2
Backlight Voltage Typical: 19.2
Backlight Voltage Maximum: 19.2
Backlight Current Minimum (mAh): 120
Backlight Current Typical (mAh): 180
Backlight Current Maximum (mAh): 180
Maximum Backlight Consumption: 3.89
Typical Backlight Consumption: 2.3
Backlight Driver Board: None
Backlight Connection: via Connector
Signal type: LVDS
Signal Channels: 1
Signal bits: 6-bit
VCC: 3.3
Signal Interface: Connector

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 800 x 600
Dot Pitch: 0.09
Dot pitch vertical: 0.26
Glare: Antiglare
Hardness: Hard coating (3H)
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 300
Contrast: 400
Colors: 262000
Gray Scale: 6-bit
Gamut Percentage: 50
Color Gamut Type: NTSC
Left Viewing Angle: 70
Top Viewing Angle: 70
Right Viewing Angle: 60
Bottom Viewing Angle: 70
Optimal Viewing Direction: 12 o'clock
Response Time: 10
Response Time: 15
Chromaticity: 0.32
Chromaticity: 0.34
light uniformity: 1.25/1.43 (Typ./Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 10.4
Aspect Ratio: 4 x 3
Shape: Flat Rectangle
Vertical Active Area: 158.4
Bezel Height: 161.4
Outline Vertical: 176.9
Outline Depth Typical: 7.3
Outline Depth Max: 7.6000
Mounting: Face mounting holes (4-Φ2.5, 2-R1.25) on left, right bezel
Orientation: Vertical
Mounting Holes: Face mounting holes (4-Φ2.5, 2-R1.25) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED
Resistive Touchscreen Type: 4-Wire
Simultaneous Touch Points: 1
Touchscreen Connection: Connector
Touchscreen Controller: Without touch controller

Weights specs

Minimum Weight: 412
Typical Weight: 412
Maximum Weight: 412

Temperature Specs

Minimum Operating Temperature: -20
Maximum Operating Temperature: 70
Storage Temperature Minumum: -30
Storage Temperature Maximum: 80
