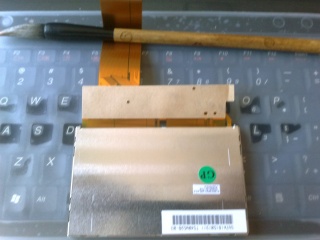

4" Inch TFT-LCD Display

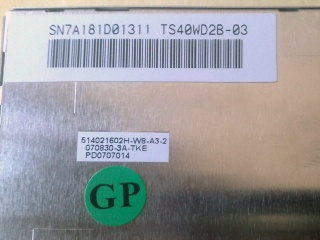

TS40WD2B-03
Other

Product description

TS40WD2B-03 is a display manufactured by Other. It has a resolution of 480 x 272, brightness of 320 cd/m2 and contrast of 350:1.

Electrical Specs

Backlight Location: Edge
Backlight: WLED
Backlight Lamp Quantity: 8S1P
Baklight Arrangement: 1 row
Backlight Voltage Minimum: 26.4
Backlight Voltage Typical: 26.4
Backlight Voltage Maximum: 26.4
Backlight Current Typical (mAh): 20
Typical Backlight Consumption: 0.53
Backlight Driver Board: None
Backlight Connection: Embedded into Signal
Signal type: Parallel RGB
Signal Channels: 1
Signal bits: 8-bit
VCC: 3.3
Typical LCD Power Consumption: 0.1
Signal Interface: FPC
Signal Interface Connectors: 1
Signal Pins Quantity: 50

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 480 x 272
Dot Pitch: 0.06
Dot pitch vertical: 0.18
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 320
Contrast: 350
Colors: 16700000
Gray Scale: 8-bit
Gamut Percentage: 54
Color Gamut Type: NTSC
Left Viewing Angle: 60
Top Viewing Angle: 60
Right Viewing Angle: 50
Bottom Viewing Angle: 55
Response Time: 10
Response Time: 15
Sunlight Readable: No
Reverse Scan: Yes
Reverse Scan Direction: U/D

Mechanical specs

Display Type: LCM
Size: 4
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 49.78
Outline Vertical: 62.6
Outline Depth Typical: 6.15
Orientation: Vertical

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED
Resistive Touchscreen Type: 4-Wire
Touchscreen Connection: FPC

Weights specs

Temperature Specs

Minimum Operating Temperature: -30
Maximum Operating Temperature: 85
Storage Temperature Minumum: -40
Storage Temperature Maximum: 85
