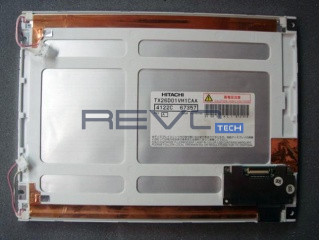

KOE TX26D01VM1CAA - TFT-LCD 640 x 480

Product description

TX26D01VM1CAA is a display manufactured by KOE. It has a resolution of 640 x 480, brightness of 350 cd/m2 and contrast of 500:1.

Electrical Specs

Backlight Location: Edge (Top and Bottom)
Backlight: CCFL
Backlight Lamp Quantity: 2 pcs
Baklight Arrangement: Straight
Backlight Voltage Minimum: 490
Backlight Voltage Typical: 490
Backlight Voltage Maximum: 490
Backlight Current Minimum (mAh): 4
Backlight Current Typical (mAh): 6
Backlight Current Maximum (mAh): 6.5
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: JST
Backlight Interface Model: BHR-02(8.0)VS-1N
Blu interface pin pitch mm: 8
Blu interface amount: 2
Blu interface pin amount: 2
Blu interface pin configuration: 0
Signal type: CMOS
Signal Channels: 1
Signal bits: 6-bit
LCD Signal VDD: 3.3
Signal Interface: Connector
Signal Interface Manufacturer: HRS
Signal Interface Model: FH12-32S-0.5SH
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 32
Signal Pins Configuration: DRGB-32P1C6B-010A

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 640 x 480
Dot Pitch: 0.11
Dot pitch vertical: 0.33
Glare: Antiglare
Hardness: Hard coating (3H)
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 350
Contrast: 500
Colors: 262000
Gray Scale: 6-bit
Left Viewing Angle: 50
Top Viewing Angle: 50
Right Viewing Angle: 50
Bottom Viewing Angle: 50
Response Time: 30
Response Time: 20
Chromaticity: 0.32
Chromaticity: 0.33
light uniformity: 1.67 (Max.)
(5 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 10.4
Aspect Ratio: 4 x 3
Shape: Flat Rectangle
Vertical Active Area: 158.4
Bezel Height: 162.6
Outline Vertical: 181.6
Outline Depth Max: 12.5000
Mounting: Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel
Orientation: Vertical
Mounting Holes: Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 450
Typical Weight: 450
Maximum Weight: 450

Temperature Specs

Minimum Operating Temperature: -20
Maximum Operating Temperature: 70
Storage Temperature Minumum: -20
Storage Temperature Maximum: 70
