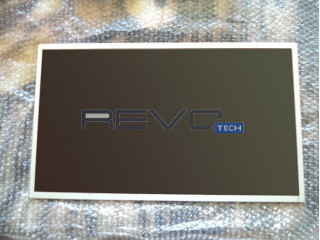

Innolux V236BJ1-LE1 - TFT-LCD 1366 x 768

Product description

V236BJ1-LE1 is a display manufactured by Innolux. It has a resolution of 1366 x 768, brightness of 250 cd/m2 and contrast of 3000:1.

Electrical Specs

Total Power Consumption (Watts): 22.68
Backlight Location: Edge (Bottom side)
Backlight: WLED
Baklight Arrangement: 8 rows
Lamp Lifetime (Time to Half Brightness): 30000
Backlight Voltage Minimum: 25.2
Backlight Voltage Typical: 25.2
Backlight Voltage Maximum: 25.2
Backlight Current Minimum (mAh): 65
Backlight Current Typical (mAh): 70
Backlight Current Maximum (mAh): 70
Maximum Backlight Consumption: 16.33
Typical Backlight Consumption: 14.5
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: E&T
Backlight Interface Model: 7083K-F12N-00L
Blu interface pin pitch mm: 0.5
Blu interface amount: 1
Blu interface pin amount: 12
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 1
Signal bits: 8-bit
VCC: 12
Maximum LCD Power Consumption: 6.35
Typical LCD Power Consumption: 4.88
Signal Interface: Connector
Signal Interface Manufacturer: P-TWO
Signal Interface Model: 187053-30091
LCD Signal Interface Pins Pitch (mm): 1
Signal Interface Connectors: 1
Signal Pins Quantity: 30
Signal Pins Configuration: LVDS-30P1C8B-070B

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1366 x 768
Dot Pitch: 0.13
Dot pitch vertical: 0.38
Glare: Antiglare
Glare: 1
Hardness: Hard coating (3H)
Reflection: No
Display Type: VA
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 250
Contrast: 3000
Colors: 16700000
Gray Scale: 6-bit + Hi-FRC
Gamut Percentage: 72
Color Gamut Type: NTSC
Left Viewing Angle: 88
Top Viewing Angle: 88
Right Viewing Angle: 88
Bottom Viewing Angle: 88
Optimal Viewing Direction: Symmetrical
Chromaticity: 0.28
Chromaticity: 0.29
light uniformity: 1.42 (Max.)
(5 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 23.6
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 293.18
Bezel Height: 297.22
Outline Vertical: 320.5
Outline Depth Typical: 8.5
Outline Depth Max: 11.9000
Mounting: Side mounting holes (4-M3) on left, right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (4-M3) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 2270
Typical Weight: 2270
Maximum Weight: 2270

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
