31.5" Inch TFT-LCD Display

V315B1-L01
Innolux

Home
TFT-LCD
Innolux

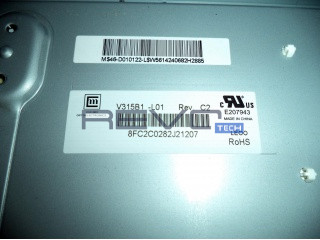

V315B1-L01

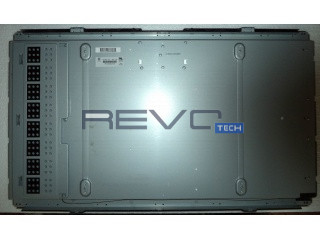

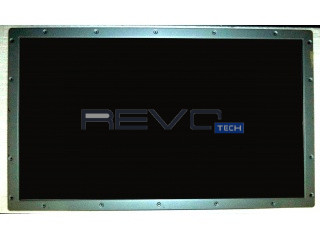

Innolux V315B1-L01 - TFT-LCD 1366 x 768

Product description

V315B1-L01 is a display manufactured by Innolux. It has a resolution of 1366 x 768, brightness of 500 cd/m2 and contrast of 1500:1.

Electrical Specs

Backlight Location: Direct
Backlight: CCFL
Backlight Lamp Quantity: 16 pcs
Baklight Arrangement: Straight
Lamp Lifetime (Time to Half Brightness): 50000
Backlight Voltage Minimum: 1250
Backlight Voltage Typical: 1250
Backlight Voltage Maximum: 1250
Backlight Current Minimum (mAh): -0.5
Backlight Current Typical (mAh): 5.2
Backlight Current Maximum (mAh): 5.7
Backlight Driver Board: With Inverter
Minimum Voltage Driver Consumption: 22.8
Maximum Voltage Driver Consumption: 25.2
Minimum Backlight Consumption: 110
Maximum Backlight Consumption (Watts): 120
Backlight Connection: via Connector
Backlight Interface Manufacturer: JST
Backlight Interface Model: S14B-PH-SM3-TB(D)(LF)
Blu interface pin pitch mm: 2
Blu interface amount: 1
Blu interface pin amount: 14
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 1
Signal bits: 8-bit
VCC: 5
Signal Interface: Connector
Signal Interface Manufacturer: JAE
Signal Interface Model: FI-E30S
LCD Signal Interface Pins Pitch (mm): 1
Signal Interface Connectors: 1
Signal Pins Quantity: 30
Signal Pins Configuration: LVDS-30P1C8B-170Q

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1366 x 768
Dot Pitch: 0.17
Dot pitch vertical: 0.51
Glare: Antiglare
Glare: 25
Hardness: Hard coating (3H)
Reflection: No
Display Type: VA
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 500
Contrast: 1500
Colors: 16700000
Gray Scale: 8-bit
Gamut Percentage: 72
Color Gamut Type: NTSC
Left Viewing Angle: 88
Top Viewing Angle: 88
Right Viewing Angle: 88
Bottom Viewing Angle: 88
Optimal Viewing Direction: Symmetrical
Chromaticity: 0.28
Chromaticity: 0.29
light uniformity: 1.30 (Max.)
(5 points)
Sunlight Readable: No
Reverse Scan: Yes
Reverse Scan Direction: 180 degrees

Mechanical specs

Display Type: LCM
Size: 31.5
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 392.26
Bezel Height: 398.4
Outline Vertical: 450
Mounting: Side mounting holes (10-M4); Rear mounting holes (8-M4)
Orientation: Vertical
Mounting Holes: Side mounting holes (10-M4); Rear mounting holes (8-M4)

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 6500
Typical Weight: 6500
Maximum Weight: 6500

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
