32" Inch TFT-LCD Display

V320B1-L06
Innolux

Home
TFT-LCD
Innolux
V320B1-L06

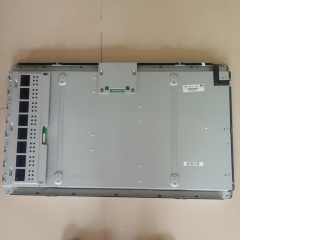

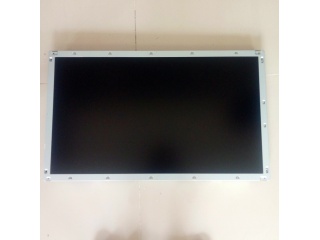

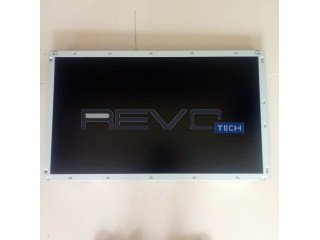

32" Inch TFT-LCD Display

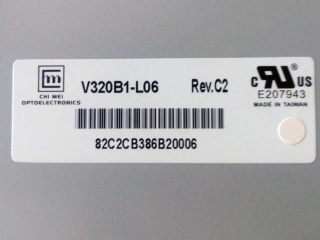

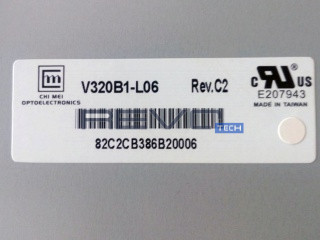

V320B1-L06
Innolux

Product description

V320B1-L06 is a display manufactured by Innolux. It has a resolution of 1366 x 768, brightness of 400 cd/m2 and contrast of 1200:1.

Electrical Specs

Backlight Location: Direct
Backlight: CCFL
Backlight Lamp Quantity: 16 pcs
Baklight Arrangement: Straight
Lamp Lifetime (Time to Half Brightness): 60000
Backlight Driver Board: With Inverter
Minimum Backlight Consumption: 108
Maximum Backlight Consumption (Watts): 113
Backlight Connection: via Connector
Signal type: LVDS
Signal Channels: 1
Signal bits: 8-bit
VCC: 5
Signal Interface: Connector

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1366 x 768
Dot Pitch: 0.17
Dot pitch vertical: 0.52
Glare: Antiglare
Glare: 25
Hardness: Hard coating (3H)
Reflection: No
Display Type: VA
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 400
Contrast: 1200
Colors: 16700000
Gray Scale: 8-bit
Gamut Percentage: 75
Color Gamut Type: NTSC
Left Viewing Angle: 88
Top Viewing Angle: 88
Right Viewing Angle: 88
Bottom Viewing Angle: 88
Optimal Viewing Direction: Symmetrical
light uniformity: 1.30 (Max.)
(5 points)
Sunlight Readable: No
Reverse Scan: Yes
Reverse Scan Direction: 180 degrees

Mechanical specs

Display Type: LCM
Size: 32
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 398.59
Bezel Height: 404.6
Outline Vertical: 450
Outline Depth Typical: 47.4
Outline Depth Max: 48.4000
Mounting: Side mounting holes (10-M4); Face mounting holes (4-Ф4); Rear mounting holes (8-M4).
Orientation: Vertical
Mounting Holes: Side mounting holes (10-M4); Face mounting holes (4-Ф4); Rear mounting holes (8-M4).

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 6500
Typical Weight: 6500
Maximum Weight: 6500

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
