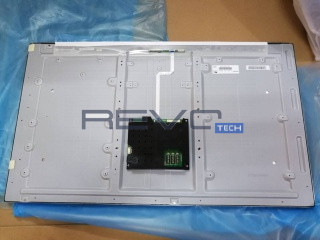

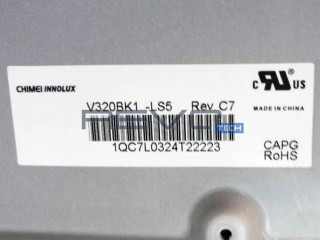

Innolux V320BK1-LS5 - TFT-LCD 1366 x 768

Product description

V320BK1-LS5 is a display manufactured by Innolux. It has a resolution of 1366 x 768, brightness of 350 cd/m2 and contrast of 3000:1.

Electrical Specs

Vertical frequency hz input signal: 60
Vertical frequency hz display output: 120
Backlight Location: Edge
Backlight: WLED
Backlight Lamp Quantity: 6 strings
Baklight Arrangement: 6 rows
Lamp Lifetime (Time to Half Brightness): 30000
Backlight Voltage Minimum: 33.84
Backlight Voltage Typical: 33.84
Backlight Voltage Maximum: 33.84
Backlight Current Minimum (mAh): 130
Backlight Current Typical (mAh): 137.8
Backlight Current Maximum (mAh): 137.8
Backlight Driver Board: With LED Driver
Minimum Voltage Driver Consumption: 22.8
Maximum Voltage Driver Consumption: 25.2
Minimum Backlight Consumption: 32.1
Maximum Backlight Consumption (Watts): 40
Backlight Connection: via Connector
Signal type: LVDS
Signal Channels: 2
Signal bits: 8-bit
VCC: 12
Maximum LCD Power Consumption: 4.2
Typical LCD Power Consumption: 3.48
Signal Interface: Connector

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1366 x 768
Dot Pitch: 0.17
Dot pitch vertical: 0.51
Glare: Antiglare
Glare: 3
Hardness: Hard coating (3H)
Reflection: No
Display Type: VA
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 350
Contrast: 3000
Colors: 16700000
Gray Scale: 8-bit
Gamut Percentage: 72
Color Gamut Type: NTSC
Left Viewing Angle: 88
Top Viewing Angle: 88
Right Viewing Angle: 88
Bottom Viewing Angle: 88
Optimal Viewing Direction: Symmetrical
Chromaticity: 0.28
Chromaticity: 0.29
light uniformity: 1.30 (Max.)
(5 points)
3D Type: 3D (Shutter Glass)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 31.5
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 392.26
Bezel Height: 398.4
Outline Vertical: 421.9
Outline Depth Typical: 25.6
Outline Depth Max: 26.6000
Orientation: Vertical

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 4480
Typical Weight: 4480
Maximum Weight: 4480

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
