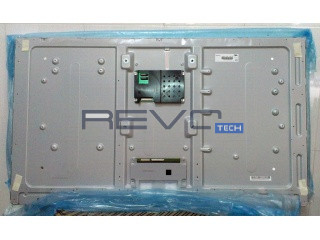

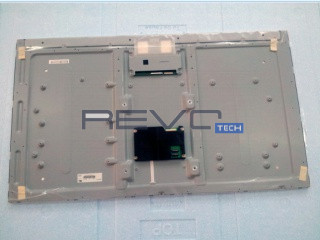

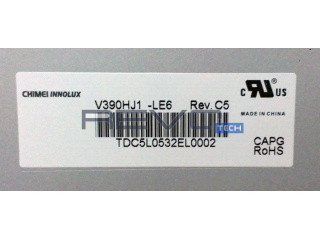

Innolux V390HJ1-LE6 - TFT-LCD 1920 x 1080 Full HD

Product description

V390HJ1-LE6 is a display manufactured by Innolux. It has a resolution of 1920 x 1080, brightness of 350 cd/m2 and contrast of 3500:1.

Electrical Specs

Backlight Location: Edge
Backlight: WLED
Lamp Lifetime (Time to Half Brightness): 30000
Backlight Driver Board: With LED Driver
Minimum Voltage Driver Consumption: 22.8
Maximum Voltage Driver Consumption: 25.2
Minimum Backlight Consumption: 31.92
Maximum Backlight Consumption (Watts): 36.71
Backlight Connection: via Connector
Backlight Interface Manufacturer: FCN
Backlight Interface Model: JH2-D4-143N
Blu interface pin pitch mm: 2
Blu interface amount: 1
Blu interface pin amount: 14
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 2
Signal bits: 8-bit
VCC: 12
Maximum LCD Power Consumption: 5.04
Typical LCD Power Consumption: 4.2
Signal Interface: Connector
Signal Interface Manufacturer: FCN
Signal Interface Model: WF23-402-5133
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 51

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1920 x 1080
Dot Pitch: 0.15
Dot pitch vertical: 0.44
Glare: Antiglare
Glare: 1
Hardness: Hard coating (3H)
Reflection: No
Display Type: VA
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 350
Contrast: 3500
Colors: 16700000
Gray Scale: 8-bit
Gamut Percentage: 68
Color Gamut Type: NTSC
Left Viewing Angle: 88
Top Viewing Angle: 88
Right Viewing Angle: 88
Bottom Viewing Angle: 88
Optimal Viewing Direction: Symmetrical
Chromaticity: 0.28
Chromaticity: 0.29
light uniformity: 1.30 (Max.)
(5 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 39
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 480.33
Bezel Height: 485.63
Outline Vertical: 501.63
Outline Depth Typical: 25.6
Outline Depth Max: 26.6000
Orientation: Vertical

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 7120
Typical Weight: 7120
Maximum Weight: 7120

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
