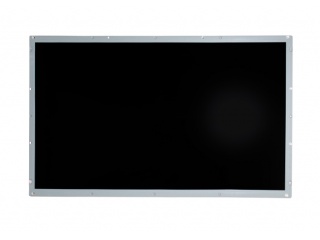

46" Inch TFT-LCD Display

V460H1-LS1
Innolux

Home
TFT-LCD
Innolux
V460H1-LS1

46" Inch TFT-LCD Display
V460H1-LS1
Innolux

Product description

V460H1-LS1 is a display manufactured by Innolux. It has a resolution of 1920 x 1080, brightness of 350 cd/m2 and contrast of 6000:1.

Electrical Specs

Backlight Location: Edge
Backlight: WLED
Backlight Lamp Quantity: 4 strings
Baklight Arrangement: 4 rows
Lamp Lifetime (Time to Half Brightness): 30000
Backlight Driver Board: With LED Driver
Minimum Voltage Driver Consumption: 22.8
Maximum Voltage Driver Consumption: 25.2
Minimum Backlight Consumption: 104
Maximum Backlight Consumption (Watts): 75
Backlight Connection: via Connector
Backlight Interface Manufacturer: CviLux
Backlight Interface Model: CI0114M1HR0-LF
Blu interface pin pitch mm: 2
Blu interface amount: 1
Blu interface pin amount: 14
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 4
Signal bits: 10-bit
VCC: 12
Maximum LCD Power Consumption: 9.24
Typical LCD Power Consumption: 7.8
Signal Interface: Connector
Signal Interface Manufacturer: JAE
Signal Interface Model: FI-RE51S-HF
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 51

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1920 x 1080
Dot Pitch: 0.18
Dot pitch vertical: 0.53
Glare: Antiglare
Glare: 11
Hardness: Hard coating (3H)
Reflection: No
Display Type: VA
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 350
Contrast: 6000
Gray Scale: 8-bit + Hi-FRC
Gamut Percentage: 72
Color Gamut Type: NTSC
Left Viewing Angle: 88
Top Viewing Angle: 88
Right Viewing Angle: 88
Bottom Viewing Angle: 88
Optimal Viewing Direction: Symmetrical
Chromaticity: 0.28
Chromaticity: 0.29
light uniformity: 1.30 (Max.)
(5 points)
3D Type: 3D (Shutter Glass)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 46
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 572.67
Bezel Height: 578.67
Outline Vertical: 634.7
Outline Depth Typical: 25.6
Outline Depth Max: 26.6000
Orientation: Vertical

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 9500
Typical Weight: 9500
Maximum Weight: 9500

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
