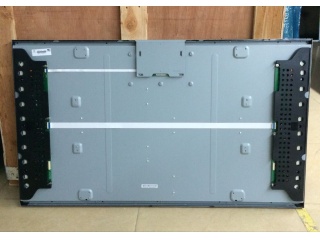

47" Inch TFT-LCD Display

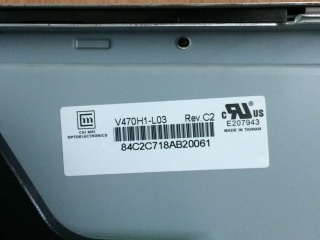

V470H1-L03
Innolux

Product description

V470H1-L03 is a display manufactured by Innolux. It has a resolution of 1920 x 1080, brightness of 500 cd/m2 and contrast of 2000:1.

Electrical Specs

Backlight Location: Direct
Backlight: CCFL
Backlight Lamp Quantity: 20 pcs
Baklight Arrangement: Straight
Lamp Lifetime (Time to Half Brightness): 50000
Backlight Voltage Minimum: 1750
Backlight Voltage Typical: 1750
Backlight Voltage Maximum: 1750
Backlight Current Typical (mAh): 6
Backlight Driver Board: With Inverter
Minimum Backlight Consumption: 216
Maximum Backlight Consumption (Watts): 227
Backlight Connection: via Connector
Backlight Interface Manufacturer: JST
Backlight Interface Model: S14B-PH-SM3-TB(D)(LF), S12B-PH-SM3-TB(D)(LF)
Blu interface pin pitch mm: 2
Blu interface amount: 1
Blu interface pin amount: 14
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 2
Signal bits: 8-bit
VCC: 12
Signal Interface: Connector
Signal Interface Manufacturer: LS Mtron
Signal Interface Model: GT05L-51S-H38
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 51
Signal Pins Configuration: LVDS-51P2C8B-040A

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1920 x 1080
Dot Pitch: 0.18
Dot pitch vertical: 0.54
Glare: Antiglare
Glare: 25
Hardness: Hard coating (3H)
Reflection: No
Display Type: VA
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 500
Contrast: 2000
Colors: 16700000
Gray Scale: 8-bit
Gamut Percentage: 72
Color Gamut Type: NTSC
Left Viewing Angle: 88
Top Viewing Angle: 88
Right Viewing Angle: 88
Bottom Viewing Angle: 88
Optimal Viewing Direction: Symmetrical
Chromaticity: 0.28
Chromaticity: 0.29
light uniformity: 1.30 (Max.)
(5 points)
Sunlight Readable: No
Reverse Scan: Yes
Reverse Scan Direction: 180 degrees

Mechanical specs

Display Type: LCM
Size: 47
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 584.82
Bezel Height: 594.4
Outline Vertical: 640
Outline Depth Typical: 51
Mounting: Side mounting holes (6-M4); Rear mounting holes (12-M4)
Orientation: Vertical
Mounting Holes: Side mounting holes (6-M4); Rear mounting holes (12-M4)

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 15500
Typical Weight: 15500
Maximum Weight: 15500

Temperature Specs

Maximum Operating Temperature: 45
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
