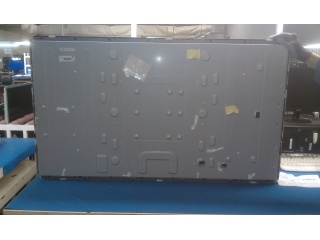

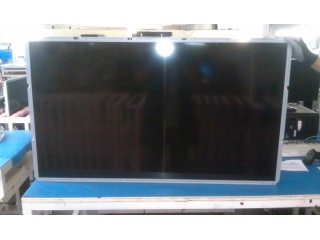

50" Inch TFT-LCD Display

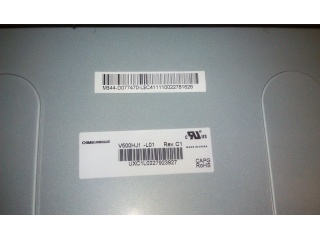

V500HJ1-L01
Innolux

Home
TFT-LCD
Innolux
V500HJ1-L01

50" Inch TFT-LCD Display
V500HJ1-L01
Innolux

Product description

V500HJ1-L01 is a display manufactured by Innolux. It has a resolution of 1920 x 1080, brightness of 350 cd/m2 and contrast of 4000:1.

Electrical Specs

Backlight Location: Direct
Backlight: CCFL
Lamp Lifetime (Time to Half Brightness): 50000
Backlight Voltage Minimum: 896
Backlight Voltage Typical: 896
Backlight Voltage Maximum: 896
Backlight Current Minimum (mAh): -0.5
Backlight Current Typical (mAh): 14.5
Backlight Current Maximum (mAh): 15
Backlight Driver Board: With Balance board
Minimum Backlight Consumption: 156.8
Maximum Backlight Consumption (Watts): 163.4
Backlight Connection: via Connector
Backlight Interface Manufacturer: CviLux
Backlight Interface Model: CI0112M1HR0-LA
Blu interface pin pitch mm: 2
Blu interface amount: 1
Blu interface pin amount: 12
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 2
Signal bits: 8-bit
VCC: 12
Maximum LCD Power Consumption: 12.01
Typical LCD Power Consumption: 8.88
Signal Interface: Connector
Signal Interface Manufacturer: FCN
Signal Interface Model: WF23-400-513C
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 51
Signal Pins Configuration: LVDS-51P2C8B-070A

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1920 x 1080
Dot Pitch: 0.19
Dot pitch vertical: 0.57
Glare: Antiglare
Glare: 3
Hardness: Hard coating (3H)
Reflection: No
Display Type: VA
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 350
Contrast: 4000
Colors: 16700000
Gray Scale: 8-bit
Gamut Percentage: 72
Color Gamut Type: NTSC
Left Viewing Angle: 88
Top Viewing Angle: 88
Right Viewing Angle: 88
Bottom Viewing Angle: 88
Optimal Viewing Direction: Symmetrical
Chromaticity: 0.28
Chromaticity: 0.29
light uniformity: 1.30 (Max.)
(5 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 50
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 616.41
Bezel Height: 623.41
Outline Vertical: 663.41
Outline Depth Typical: 51.8
Outline Depth Max: 53.1000
Orientation: Vertical

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 12500
Typical Weight: 12500
Maximum Weight: 12500

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
