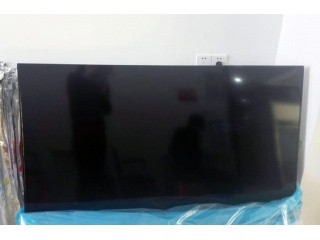

58" Inch TFT-LCD Display
V580DK2-KS1
Innolux

Product description

V580DK2-KS1 is a display manufactured by Innolux. It has a resolution of 3840 x 2160, brightness of 400 cd/m2 and contrast of 4000:1.

Electrical Specs

Backlight Location: Edge
Backlight: WLED
Lamp Lifetime (Time to Half Brightness): 30000
Backlight Driver Board: With LED Driver
Minimum Voltage Driver Consumption: 21.6
Maximum Voltage Driver Consumption: 26.4
Minimum Backlight Consumption: 129
Maximum Backlight Consumption (Watts): 129
Backlight Connection: via Connector
Backlight Interface Manufacturer: CviLux
Backlight Interface Model: CI0114M1HR0-LA
Blu interface pin pitch mm: 2
Blu interface amount: 1
Blu interface pin amount: 14
Blu interface pin configuration: 0
Signal type: V-by-One 8 lane
VCC: 12
Maximum LCD Power Consumption: 15.62
Typical LCD Power Consumption: 13.08
Signal Interface: Connector
Signal Interface Manufacturer: P-TWO
Signal Interface Model: 187059-51221
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 51

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 3840 x 2160
Dot Pitch: 0.11
Dot pitch vertical: 0.33
Glare: Antiglare
Glare: 1
Reflection: No
Display Type: VA
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 400
Contrast: 4000
Gray Scale: 8-bit + Hi-FRC
Gamut Percentage: 72
Color Gamut Type: NTSC
Left Viewing Angle: 88
Top Viewing Angle: 88
Right Viewing Angle: 88
Bottom Viewing Angle: 88
Optimal Viewing Direction: Symmetrical
Chromaticity: 0.28
Chromaticity: 0.29
light uniformity: 1.30 (Max.)
(5 points)
3D Type: 3D (Shutter Glass)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 58
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 721.44
Bezel Height: 726.7
Outline Vertical: 744.7
Outline Depth Typical: 16.2
Outline Depth Max: 28.6000
Orientation: Vertical

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 18800
Typical Weight: 18800
Maximum Weight: 18800

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
