7" Inch TFT-LCD Display

VVX07F023B00
Panasonic

Home
TFT-LCD
Panasonic
VVX07F023B00

7" Inch TFT-LCD Display
VVX07F023B00
Panasonic

Product description

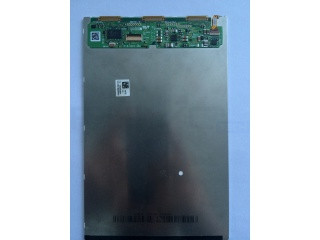

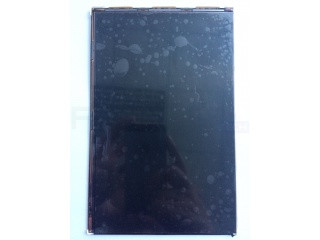

VVX07F023B00 is a display manufactured by Panasonic. It has a resolution of 1200 x 1920, brightness of 430 cd/m2 and contrast of 1000:1.

Available Stock

Condition: New Functionally never used, may come with original packaging
Available: 500 units
Added: November 1, 2022
Updated: November 1, 2022

Enter Quantity

Electrical Specs

Total Power Consumption (Watts): 1.99
Backlight Location: Edge
Backlight: WLED
Backlight Lamp Quantity: 4S6P
Baklight Arrangement: 6 rows
Backlight Driver Board: With LED Driver
Backlight Connection: Embedded into Signal
Signal type: MIPI
Signal Channels: 4
VCC: 3.4
Maximum LCD Power Consumption: 1.2
Typical LCD Power Consumption: 0.55
Signal Interface: Connector

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1200 x 1920
Dot Pitch: 0.03
Dot pitch vertical: 0.08
Reflection: Yes
Display Type: IPS
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 430
Contrast: 1000
Colors: 16700000
Gray Scale: 8-bit
Gamut Percentage: 60
Color Gamut Type: NTSC
Left Viewing Angle: 80
Top Viewing Angle: 80
Right Viewing Angle: 80
Bottom Viewing Angle: 80
Optimal Viewing Direction: Symmetrical
Chromaticity: 0.31
Chromaticity: 0.34
light uniformity: 1.30 (Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 7
Aspect Ratio: 10 x 16
Shape: Flat Rectangle
Vertical Active Area: 151.2
Outline Vertical: 161.37
Outline Depth Typical: 2.1
Outline Depth Max: 3.9000
Mounting: Without
Orientation: Horizontal
Mounting Holes: Without

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 72
Typical Weight: 72
Maximum Weight: 72

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
