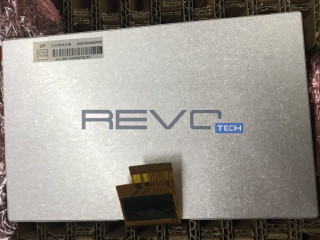

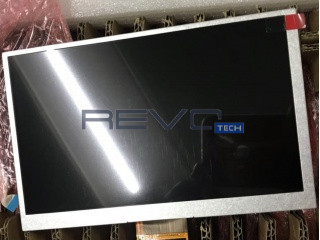

Innolux ZJ070NA-01B - TFT-LCD 1024 x 600

Product description

ZJ070NA-01B is a display manufactured by Innolux. It has a resolution of 1024 x 600, brightness of 350 cd/m2 and contrast of 700:1.

Electrical Specs

Total Power Consumption (Watts): 1.5
Backlight Location: Edge
Backlight: WLED
Backlight Lamp Quantity: 3S8P
Baklight Arrangement: Array
Lamp Lifetime (Time to Half Brightness): 20000
Backlight Voltage Minimum: 9.3
Backlight Voltage Typical: 9.3
Backlight Voltage Maximum: 9.3
Backlight Current Minimum (mAh): 160
Backlight Current Typical (mAh): 170
Backlight Current Maximum (mAh): 170
Typical Backlight Consumption: 1.5
Backlight Driver Board: None
Backlight Connection: Embedded into Signal
Signal type: LVDS
Signal Channels: 1
Signal bits: 8-bit
LCD Signal AVDD: 11
LCD Signal VGH: 20
LCD Signal VGL: -6.8
LCD Signal DVDD: 3.3
Typical LCD Power Consumption: 0.35
Signal Interface: FPC
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 40

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1024 x 600
Dot Pitch: 0.05
Dot pitch vertical: 0.15
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 350
Contrast: 700
Colors: 16700000
Gray Scale: 8-bit
Left Viewing Angle: 75
Top Viewing Angle: 75
Right Viewing Angle: 70
Bottom Viewing Angle: 75
Optimal Viewing Direction: 6 o'clock
Response Time: 10
Response Time: 15
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.33/1.43 (Typ./Max.)
Sunlight Readable: No
Reverse Scan: Yes
Reverse Scan Direction: Up/Down/Left/Right

Mechanical specs

Display Type: LCM
Size: 7
Aspect Ratio: 17 x 10
Shape: Flat Rectangle
Vertical Active Area: 90
Bezel Height: 92.8
Outline Vertical: 105.39
Outline Depth Typical: 3.4
Outline Depth Max: 3.6000
Mounting: Without
Orientation: Vertical
Mounting Holes: Without

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 113
Typical Weight: 113
Maximum Weight: 113

Temperature Specs

Minimum Operating Temperature: -20
Maximum Operating Temperature: 60
Storage Temperature Minumum: -30
Storage Temperature Maximum: 70
